SolaX Solar Inverters

With over 200 research and development staff the SolaX goal is to drive the very latest in solar innovation and be a world leader in the development and production of solar inverters and solar battery storage solutions.

With an install base of over 200,000 inverters the SolaX range has proven quality and reliability.

Backed with a 5 + 5 year warranty on the inverters, and a strong presence in Australia with local technical staff, SolarBright has chosen SolaX X-1 Boost, X-3 inverters and X-HYBRID as one of our standard single phase and three phrase inverters on our solar system packages.

SolarBright is an authorised SolaX installer.

Quick Specs
Download Brochure
Download Specs

Quick Specs

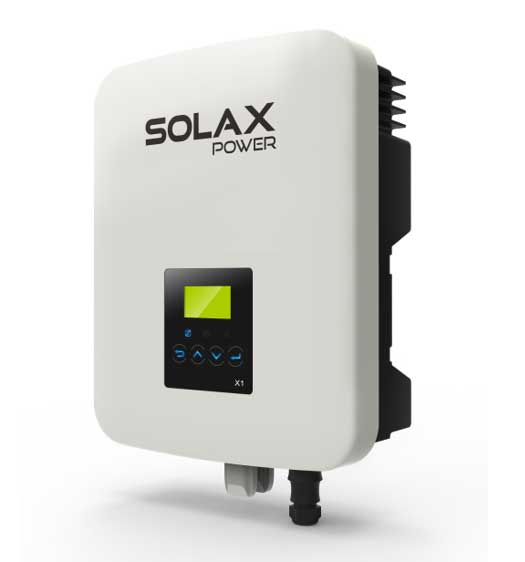

SolaX X-1 Boost Series Inverter Single Phase

The SolaX range of X-1 Boost single phase inverters are known in the industry for their quality, reliability and efficiency.

Inverter capacities of 3.0, 3.3, 3.6, 4.2 and 5.0kW – X1-3.0-T /X1-3.3T/ X1-3.6-TX1-4.2-T / X1-5.0-T
Maximum efficiency 97.8%
Wide MPPT voltage range – maximum DC voltage input of 600V
IP 65 rated suited for outdoor mounting
No internal fan – eliminates a point of failure
Optional Wi-Fi to connect to SolaX Cloud app for monitoring power production
10-year warranty

SolaX X-3 Series Inverter Three Phase

The SolaX range of X-3 Boost three phase inverters are known in the industry for their quality, reliability and efficiency.

Inverter capacities from 4 to 10kW
Secure & reliable with so􀀁ware and hardware protection
Maximum eﬃciency up to 98.5%
Wide MPPT voltage range & Two independent MPPT trackers
High protection class – IP65 (indoor/outdoor use)
Multiple protections: Over voltage / under voltage, earth protection, anti-islanding, overload, over temperature and RCD protection on, etc
10-year warranty

SolaX X-1 Hybrid Series Inverter – Single Phase

The innovative X-Hybrid is an intelligent energy storage management system and suitable with most battery storage solutions.

The X-1 Hybrid is a flexible and scalable solution for both domestic and commercial applications. The single-phase series includes inverters ranging in size from 5 to 10kW, and with the ability to install multiple inverters in parallel, scalable battery storage for commercial applications is now a reality. The inverter is equipped with a built-in EPS (Emergency Power Supply), had multiple communication options and can be controlled remotely.

3.7, 4.6 and 5kW models X1-HYBRID-3.7T X1-HYBRID-4.6T X1-HYBRID-5.0T
Max Efficiency up to 97.8%
Air Cooled
IP 65 rated suitable for outdoor & indoor use
Remote monitoring via the SolaX cloud
Max DC input voltage of 600V
Quiet & Low Maintenance
Multiple protections: RCD, isolation, over voltage, over temperature, earth protection, short-circuit protection, etc
Can be installed in parallel for scalability
Compatible with high-voltage batteries
10-year warranty

SolaX X- Hybrid Series Inverter – 3 Phase

The X-3 Hybrid is a flexible and scalable solution for both domestic and commercial applications. The three-phase series includes inverters ranging in size from 5 to 10kW, and with the ability to install multiple inverters in parallel, scalable battery storage for commercial applications is now a reality. The inverter is equipped with a built-in EPS (Emergency Power Supply), had multiple communication options and can be controlled remotely.

5, 6, 8 and 10kW models – X3-HYBRID-5.0T / X3-HYBRID-6.0T / X3-HYBRID-8.0T / X3-HYBRID-10.0T
Max Efficiency up to 97.8%
Air Cooled
IP 65 rated suitable for outdoor & indoor use
Remote monitoring via the SolaX cloud
Max DC input voltage of 1000V
Quiet & Low Maintenance
Multiple protections: RCD, isolation, over voltage, over temperature, earth protection, short-circuit protection, etc
Can be installed in parallel for scalability
Compatible with high-voltage batteries
10-year warranty

Download Brochure

Solax All in one AU 2018 Inverter Product Brochure

Download Specs

SOLAX X1 AND X3 HYBRID INVERTER DATA SPEC SHEET
