Modular Sungrow Battery Solution
The SBR Sungrow Battery series is a smart, modular, residential energy storage solution based on 3.2kWh storage modules that stack on top of each other. Therefore the battery size can be to increased from 9.9kWH all the way to 25.6kWh.
Standard solar systems and many solar and battery solution cannot offer protection in a power blackout. However the Sungrow system automatically provides backup power for the home in a power outage.
Established in 1997, Sungrow are a global leader in solar technology. 1800 staff work in R&D resulting in over 3100 patents. With over 20% of the inverter market Sungrow are a large force in Australian solar and moreover backed with a local warehouse and support centre.
Battery Sizes and Models

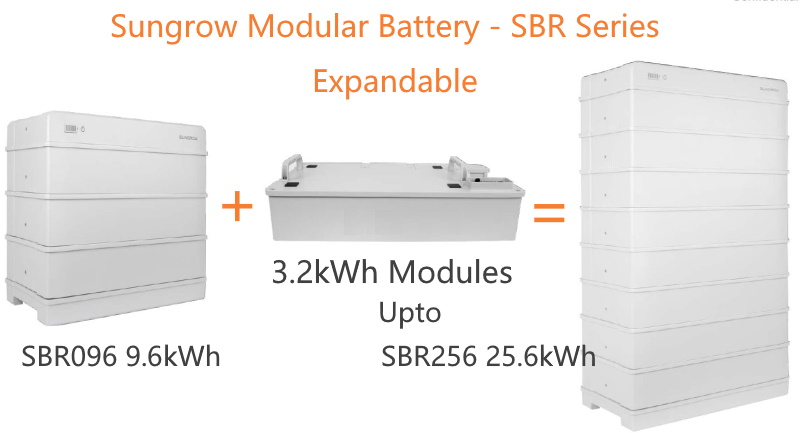

Being a modular battery means the battery capacity can be increased in 3.2kWh units from 9.6kWh through to 25.6kWh. If you first purchase the smaller battery you can later expand it. The modules are “plug and play” and no wiring is requiring making it an easy job to increase capacity.
Moreover up to four 25.4kWh batteries can be joined in parallel to give a massive capacity of over 100kWh.
Model | Battery Capacity | No. Modules | DImensions mm |
SBR096 | 9.6kWh | 3 | 625x545x330 |
SBR128 | 12.8kW | 4 | 625x675x330 |
SBR160 | 16kWh | 5 | 625x805x330 |
SBR192 | 19.2kWh | 6 | 625x935x330 |
SBR224 | 22.4kWh | 7 | 625x1065x330 |
SBR256 | 25.6kWh | 8 | 625x1195x330 |
High Performance and Safety
Sungow SBR batteries offer 100% usable energy coupled with 30A continuous charging and discharging for high performance. Lithium-ion phosphate battery chemistry is used in the modules which is a leading chemistry in terms of performance and safety. Being fully certified the battery safety protections include:
- Over / under voltage protection
- Over current protection
- Over / under temperature protection
- DC breaker.
Sungrow Protects Your Home from Power Outages
Hybrid Sungrow inverters are used in conjunction with the batteries, that’s why the battery solution can offer automatic protection from blackouts for your home or business. Standard solar and many standard solar and battery packages cannot do this.
The inverter detects if the grid loses power and will switch over to battery backup power ro run the home in under 10 milliseconds. This means there is no interruption to power for the home.

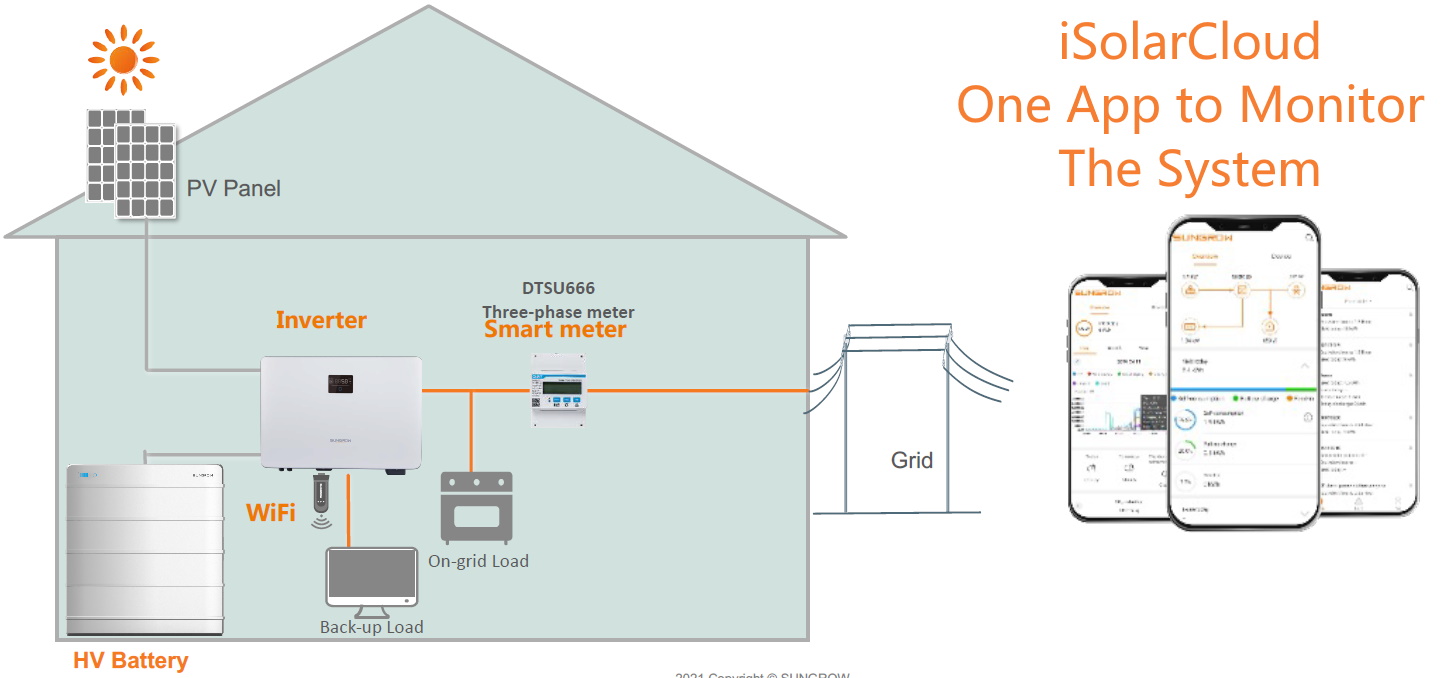

iSolar Cloud Monitoring Platform
The iSolar platform allows for the monitoring and management of the complete system all in the one app.
It is available through an app on your phone or via a web browser and allows you to monitor system power production, and the information is refreshed at 10 minute intervals.
You can see how much charge is in the battery and monitor battery usage. Installation of an optional energy meter will also allow you see how much power is being drawn for the grid and monitor power consumption. The platform can also send alerts in the event of an issue with the solar system.
